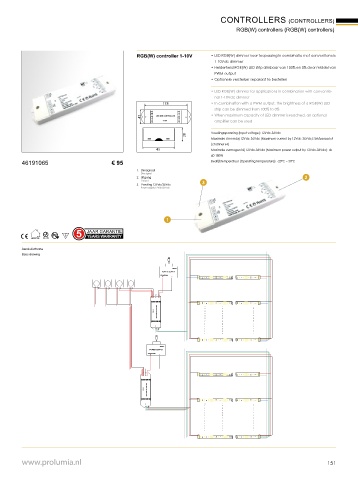

Page 151 - Prolumia Catalogus 2018/2019

CONTROLLERS (CONTROLLERS)
RGB(W) controllers (RGB(W) controllers)

RGB(W) controller 1-10V • LED RGB(W) dimmer voor toepassing in combinatie met conventionele
1-10Vdc dimmer
• Helderheid RGB(W) LED strip dimbaar van 100% en 0% door middel van
PWM output
• Optionele versterker separaat te bestellen

• LED RGB(W) dimmer for applications in combination with conventio-
nal 1-10Vdc dimmer
178 • In combination with a PWM output, the brightness of a RGB(W) LED
strip can be dimmed from 100% to 0%
45 + - + 1 LED DIM CONTROLLER + - + - + - + - • When maximum capacity of LED dimmer is reached, an optional
2
1-10V amplifier can be used
3
4
Voedingsspanning (Input voltage): 12Vdc-36Vdc
20
Maximale stroom bij 12Vdc-36Vdc (Maximum current by 12Vdc-36Vdc): 5A/kanaal x4
(channel x4)
45 Maximale vermogen bij 12Vdc-36Vdc (Maximum power output by 12Vdc-36Vdc): 4x
60-180W
46191065 € 95 Bedrijfstemperatuur (Operating temperature): -20°C ~ 50°C
1. Dimsignaal
Dim signal
2. Uitgang 2
Output 3
3. Voeding 12Vdc/36Vdc
Power supply 12Vdc/36Vdc

1

Aansluitschema
Base drawing

230Vac
POWER SUPPLY
12Vdc/24Vdc -
+

2
1
4
3
+ - +
1-10V
LED DIM CONTROLLER
+ - + - + - + -
230Vac
POWER SUPPLY
12Vdc/24Vdc -
+ + - + + - + - + - + -

3
4
2
1
1-10V
LED DIM CONTROLLER
