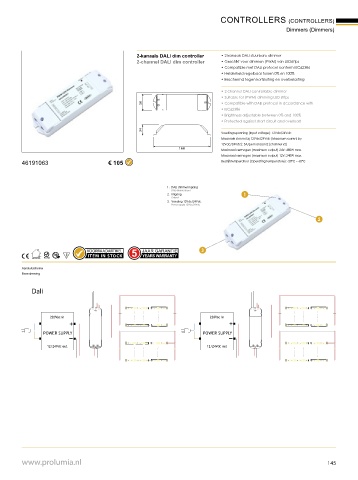

Page 145 - Prolumia Catalogus 2018/2019

CONTROLLERS (CONTROLLERS)
Dimmers (Dimmers)

2-kanaals DALI dim controller • 2 kanaals DALI stuurbare dimmer
2-channel DALI dim controller • Geschikt voor dimmen (PWM) van LEDstrips
• Compatible met DALI protocol conform IEC62386
• Helderheid regelbaar tussen 0% en 100%
• Beschermd tegen kortsluiting en overbelasting

• 2 channel DALI controllable dimmer
• Suitable for (PWM) dimming LED strips
50 • Compatible with DALI protocol in accordance with
• IEC62386
• Brightness adjustable between 0% and 100%
• Protected against short circuit and overload
34
Voedingsspanning (Input voltage): 12Vdc/24Vdc
Maximale stroom bij 12Vdc/24Vdc (Maximum current by
12Vdc/24Vdc): 5A/per kanaal x2 (channel x2)
168 Maximaal vermogen (maximum output) 24V: 480W max.
Maximaal vermogen (maximum output) 12V: 240W max.
46191063 € 105 Bedrijfstemperatuur (Operating temperature): -20°C ~ 60°C

1. DALI dimmer ingang
DALI dimmer input
2. Uitgang 1
Output
3. Voeding 12Vdc/24Vdc
Power supply 12Vdc/24Vdc
2

VOORRAADARTIKEL 3
ITEM IN STOCK

Aansluitschema
Base drawing

Dali

220Vac in 220Vac in
+ +
POWER SUPPLY POWER SUPPLY
- -
12/24Vdc out 12/24Vdc out

L push-button
N

220Vac in 220Vac in
+ +
POWER SUPPLY POWER SUPPLY
- -
12/24Vdc out 12/24Vdc out
