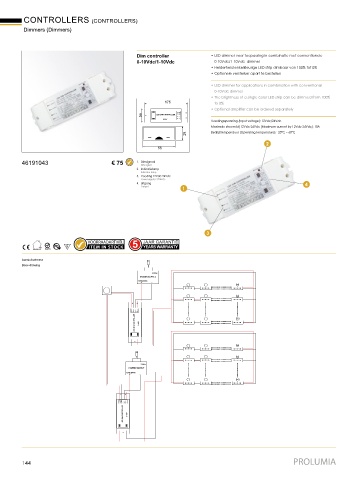

P. 144
CONTROLLERS (CONTROLLERS)
Dimmers (Dimmers)
Dim controller • LED dimmer voor toepassing in combinatie met conventionele
0-10Vdc/1-10Vdc 0-10Vdc/1-10Vdc dimmer
• Helderheid enkelkleurige LED strip dimbaar van 100% tot 0%
• Optionele versterker apart te bestellen
• LED dimmer for applications in combination with conventional
0-10Vdc dimmer
• The brightness of a single color LED strip can be dimmed from 100%
175 to 0%
• Optional amplifier can be ordered separately
SIGN+
56 LED DIM CONTROLLER SIGN- V-
0-10V V+
Voedingsspanning (Input voltage): 12Vdc/24Vdc
Maximale stroom bij 12Vdc-24Vdc (Maximum current by 12Vdc-24Vdc): 10A
28 Bedrijfstemperatuur (Operating temperature): -20°C ~ 60°C
2
56
46191043 € 75 1. Dimsignaal
Dim signal
2. Indicatielamp
Indicator lamp
3. Voeding 12Vdc-24Vdc
Power supply 12/24Vdc
4. Uitgang 4
1
Output
3
VOORRAADARTIKEL
ITEM IN STOCK
Aansluitschema
Base drawing
230Vac
POWER SUPPLY
12Vdc/24Vdc -
+
50
50
SIGN+ SIGN- V- V+
LED DIM CONTROLLER 0-10V 50
50
50
230Vac
POWER SUPPLY
12Vdc/24Vdc -
+
50
SIGN+ SIGN- V- V+
LED DIM CONTROLLER 0-10V
