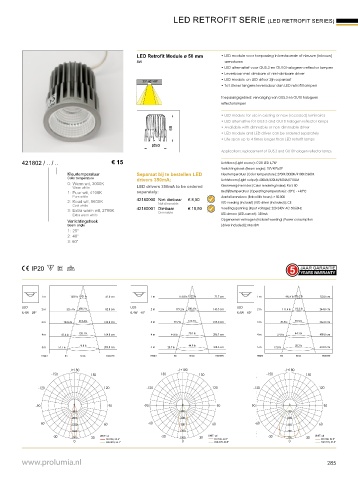

Page 285 - Prolumia Catalogus 2018/2019

LED RETROFIT SERIE (LED RETROFIT SERIES)

LED Retrofit Module ø 50 mm • LED module voor toepassing in bestaande of nieuwe (inbouw)
8W armaturen
• LED alternatief voor GU5.3 en GU10 halogeen reflector lampen
• Leverbaar met dimbare of niet-dimbare driver
• LED module en LED driver zijn separaat
• Tot 4 keer langere levensduur dan LED retrofit lampen

Toepassingsgebied: vervanging van GU5.3 en GU10 halogeen
reflectorlampen

• LED module for use in existing or new (recessed) luminaires
• LED alternative for GU5.3 and GU10 halogen reflector lamps
60 • Available with dimmable or non-dimmable driver
• LED module and LED driver can be ordered separately
• Life span up to 4 times longer than LED retrofit lamps
Ø50
Applications: replacement of GU5.3 and GU10 halogen reflector lamps
421802 / .. / .. € 15 Lichtbron (Light source): COB LED 6,7W
Verlichtingshoek (Beam angle): 25°/40°/60°
Kleurtemperatuur Separaat bij te bestellen LED Kleurtemperatuur (Color temperature): 2700K/3000K/4100K/5600K
Color temperature drivers 350mA: Lichtstroom (Light output): 600LM/620LM/650LM/710LM
0: Warm wit, 3000K Kleurweergave index (Color rendering index): Ra ≥ 80
Warm white LED drivers 350mA to be ordered
1: Puur wit, 4100K separately: Bedrijfstemperatuur (Operating temperature): -30°C - +40°C
Pure white Aantal branduren (Rated life hours): > 50.000
2: Koud wit, 5600K 42180000 Niet dimbaar € 8,50 LED voeding (inclusief) (LED driver (included)): CE

Not dimmable

Cool white
3: Extra warm wit, 2700K 42180001 Dimbaar € 18,50 Voedingsspanning (Input voltage): 220-240V AC 50/60Hz
Dimmable
Extra warm white LED-stroom (LED-current): 350mA
Verlichtingshoek Opgenomen vermogen (inclusief voeding) (Power consumption
Beam angle (driver included)): Max 8W
1: 25°
2: 40°
3: 60°
0,22

1 m 1302 lx 1921 lx 41.0 cm 1 m 716.8 lx 1122 lx 71.7 cm 1 m 445.4 lx 706.2 lx 122.0 cm
LED LED 280.5 lx LED 176.6 lx
2 m 325.4 lx 480.2 lx 82.0 cm 2 m 179.2 lx 143.3 cm 2 m 111.4 lx 244.0 cm
6,4W 25° 6,4W 40° 6,4W 60°
3 m 144.6 lx 213.4 lx 123.0 cm 3 m 79.7 lx 124.7 lx 215.0 cm 3 m 49.5 lx 78.5 lx 366.0 cm

4 m 81.4 lx 120.1 lx 164.0 cm 4 m 44.8 lx 70.1 lx 286.7 cm 4 m 27.8 lx 44.1 lx 488.0 cm
5 m 52.1 lx 76.8 lx 205.0 cm 5 m 28.7 lx 44.9 lx 358.3 cm 5 m 17.8 lx 28.3 lx 610.0 cm
Height Em Emax Diameter Height Em Emax Diameter Height Em Emax Diameter

-/+180 -/+180 -/+180
-150 150 -150 150 -150 150

-120 120 -120 120 -120 120

-90 0 90 -90 0 90 -90 0 90
400 300 150
800 600 300
-60 1200 60 -60 900 60 -60 450 60
1600 1200 600
-30 2000 30 UNIT: cd -30 1500 30 UNIT: cd -30 750 30 UNIT: cd
0 C0 /180, 23.4° 0 C0 /180, 29.4° 0 C0 /180, 62.8°
C90 /270, 23.1°
C90 /270, 63.0°
C90 /270, 39.5°
