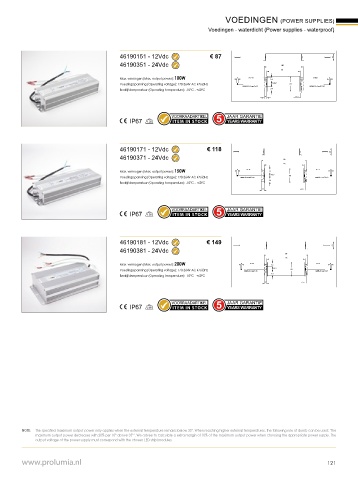

Page 121 - Prolumia Catalogus 2018/2019

VOEDINGEN (POWER SUPPLIES)
Voedingen - waterdicht (Power supplies - waterproof)

46190151 - 12Vdc € 87 42
46190351 - 24Vdc

Max. vermogen (Max. output power): 100W
Voedingsspanning (Operating voltage): 170-264V AC 47/63Hz
Bedrijfstemperatuur (Operating temperature): -10°C - +60°C

VOORRAADARTIKEL
1.20 ITEM IN STOCK

46190171 - 12Vdc € 118
45
46190371 - 24Vdc
Max. vermogen (Max. output power): 150W
Voedingsspanning (Operating voltage): 170-264V AC 47/63Hz
Bedrijfstemperatuur (Operating temperature): -10°C - +60°C

VOORRAADARTIKEL
1.50 ITEM IN STOCK

46190181 - 12Vdc € 149
42
46190381 - 24Vdc
Max. vermogen (Max. output power): 200W
Voedingsspanning (Operating voltage): 170-264V AC 47/63Hz
Bedrijfstemperatuur (Operating temperature): -10°C - +60°C

VOORRAADARTIKEL
2.80 ITEM IN STOCK

NOTE: The specified maximum output power only applies when the external temperature remains below 35°. When reaching higher external temperatures, the following rule of dumb can be used: ‘the
maximum output power decreases with 20% per 10° above 35°’. We advise to calculate a extra margin of 10% of the maximum output power when choosing the appropriate power supply. The
output voltage of the power supply must correspond with the chosen LED strip/modules.

www.prolumia.nl 121
